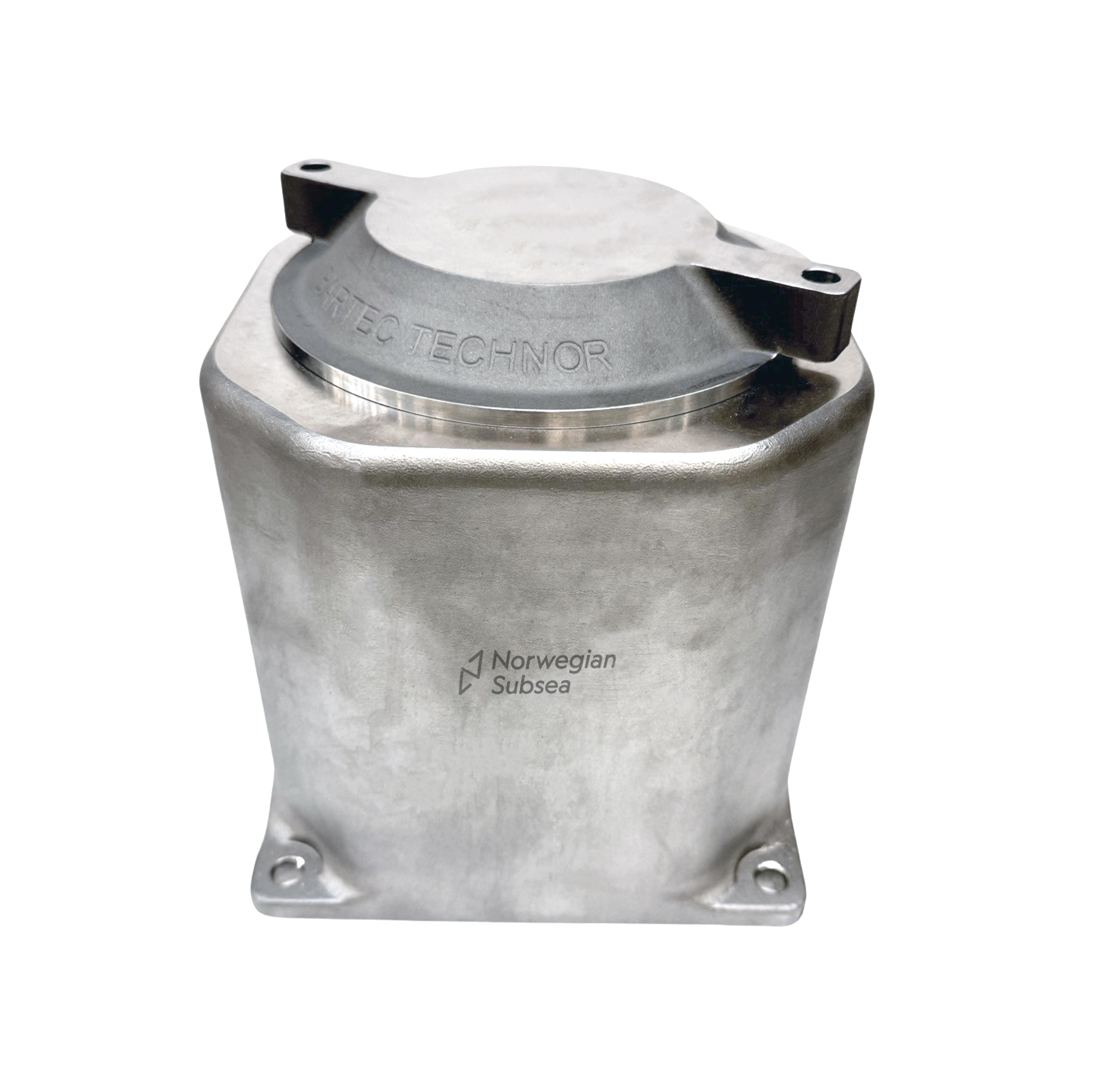

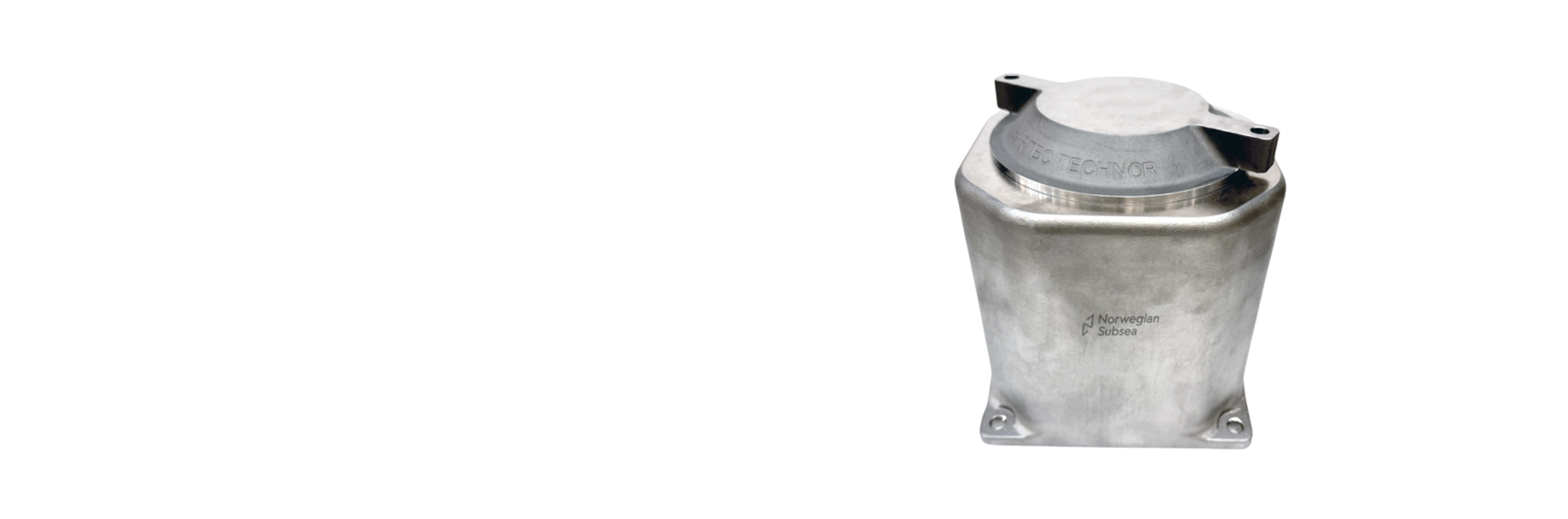

MRU Ex
MRU Ex
The MRU Ex is a compact and cost-effective solution for hazardous areas including all Ex certificates
MRU Ex
Roll and pitch dynamic accuracy of 0.05° Heave accuracy: 5 cm / 5 %
The 6000 series improves it further to 0.02°
The 9000 series achieves exceptional precision with 0.01°
Product overview
The MRU Ex is a cost-effective solution for hazardous areas. Easy to install with pigtail cable and including all certificates and documentation.
• Ex certificate II 2 G Ex d lIC Gb
• Compact and cost effective unit
• Stainless steel unit
• Ethernet & serial line
• Including pigtail cable in custom lengths
The MRU Ex comes in three different versions: 3000, 6000 and 9000 models to accommodate for different accuracy requirements and budgets.
The MRU Ex is also available in an inclinometer version of the MRU that does not include Heave/Surge/Sway outputs.
High Accuracy
High accuracy roll, pitch and heave, even in irregular sea states
Ex
Ex certificate II 2 G Ex d lIC Gb
Compact
Low weight and small footprint enable installation almost anywhere
Our custom software solution
Experience enhanced efficiency and performance with MRU Insight. Analyze, visualize, and integrate your motion data effortlessly, gaining valuable insights. From real-time monitoring to comprehensive reporting, MRU Insights revolutionizes MRU data utilization for informed decision-making, enhanced safety, and improved performance. Elevate your marine operations with MRU Insights and unlock the full potential of your MRU investment.
| Roll & Pitch | 0.05° (3000 series) - 0.02° (6000 series) - 0.01° (9000 series) - RMS (dynamic) |
| Heave (real time) | 5.0 cm or 5.0 % - Whichever is greater for 0 to 25 s periods, valid for irregular motions in real sea conditions. |
| Ports | Ethernet & RS-232 / Ethernet & RS-485 |
| Communication | TCP, UDP, Modbus TCP, ethernet/IP |
| Protocols | NMEA, ASCII, Binary TSS1, MDL, Atlas, Simrad EM 3000, NORSUB, Custom, etc. ++. See protocol list. |
| Output frequency | 0-100 Hz |
| Connector | Pigtail cable 10-wire |
| Depth rating | IP65 |
| Dimensions | 190 x 190 x 205 mm |
| Weight | 15 kg excl pigtail cable |
| Casing material | AISI 316L |
