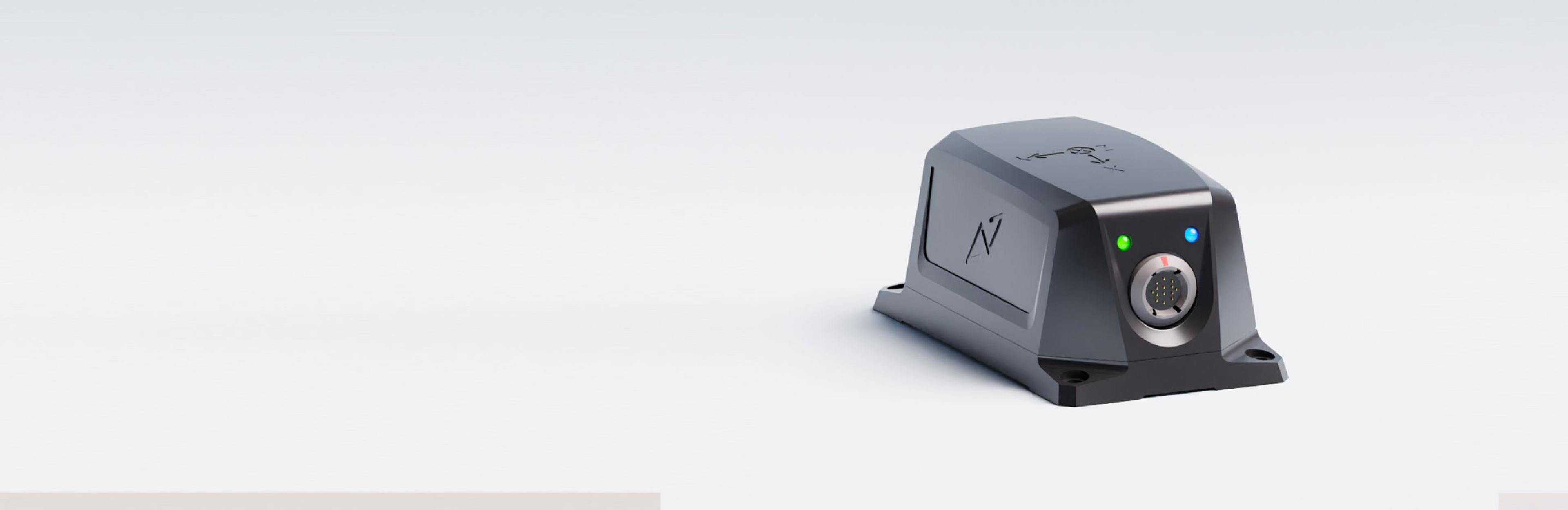

The NORSUB MRU Marine is a robust and waterproof motion reference unit designed specifically for marine applications, with flexible communication options and the option to include a magnetometer.
The 3000 series offers a roll and pitch accuracy of 0.05°
The 6000 series improves it further to 0.02°
The 9000 series achieves exceptional precision with 0.01°
The versatility and durability of Norwegian Subsea MRU Marine make it an invaluable tool for a wide range of applications, including offshore wind farms, subsea operations, marine research, and vessel performance analysis.
High AccuracyHigh accuracy roll, pitch and heave, even in irregular sea states.
Easy interfaceEthernet, serial ports and free software upgrades. Wide range of industry standard protocols. Custom NMEA and Binary protocol generator included in configuration software.
Robust and WaterproofRobust and compact waterproof aluminum housing enables mounting outdoors in the splash zone.
Our custom software solution
|Roll & Pitch||0.05° (3000 series) - 0.02° (6000 series) - 0.01° (9000 series) RMS (dynamic)|
|Heave (real time)||5.0 cm or 5.0 % - Whichever is greater for 0 to 25 s periods, valid for irregular motions in real sea conditions.|
|Ports||Ethernet, RS-232 and RS-485 (422)|
|Communication||TCP, UDP, Modbus TCP, ethernet/IP, Serial, Modbus RTU|
|Protocols||NMEA, ASCII, Binary TSS1, MDL, Atlas, Simrad EM 3000, NORSUB, Custom, etc. ++. See protocol list.|
|Output frequency||0-100 Hz|
|Connector||Lemo 16 pins|
|Dimentions||154 x 86 x 67 mm|
|Casing material||Marine Anodized Aluminum 6061-T6|
